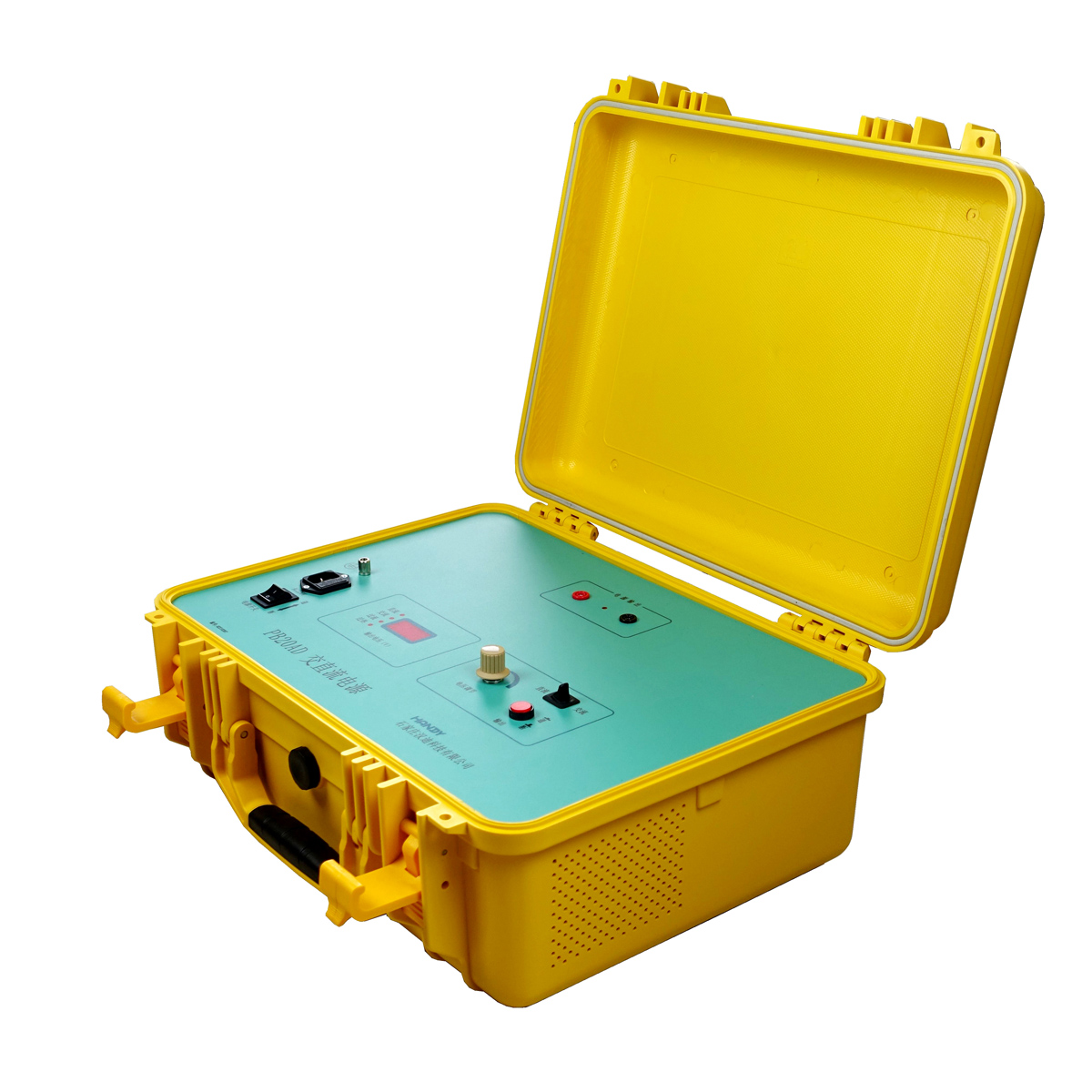

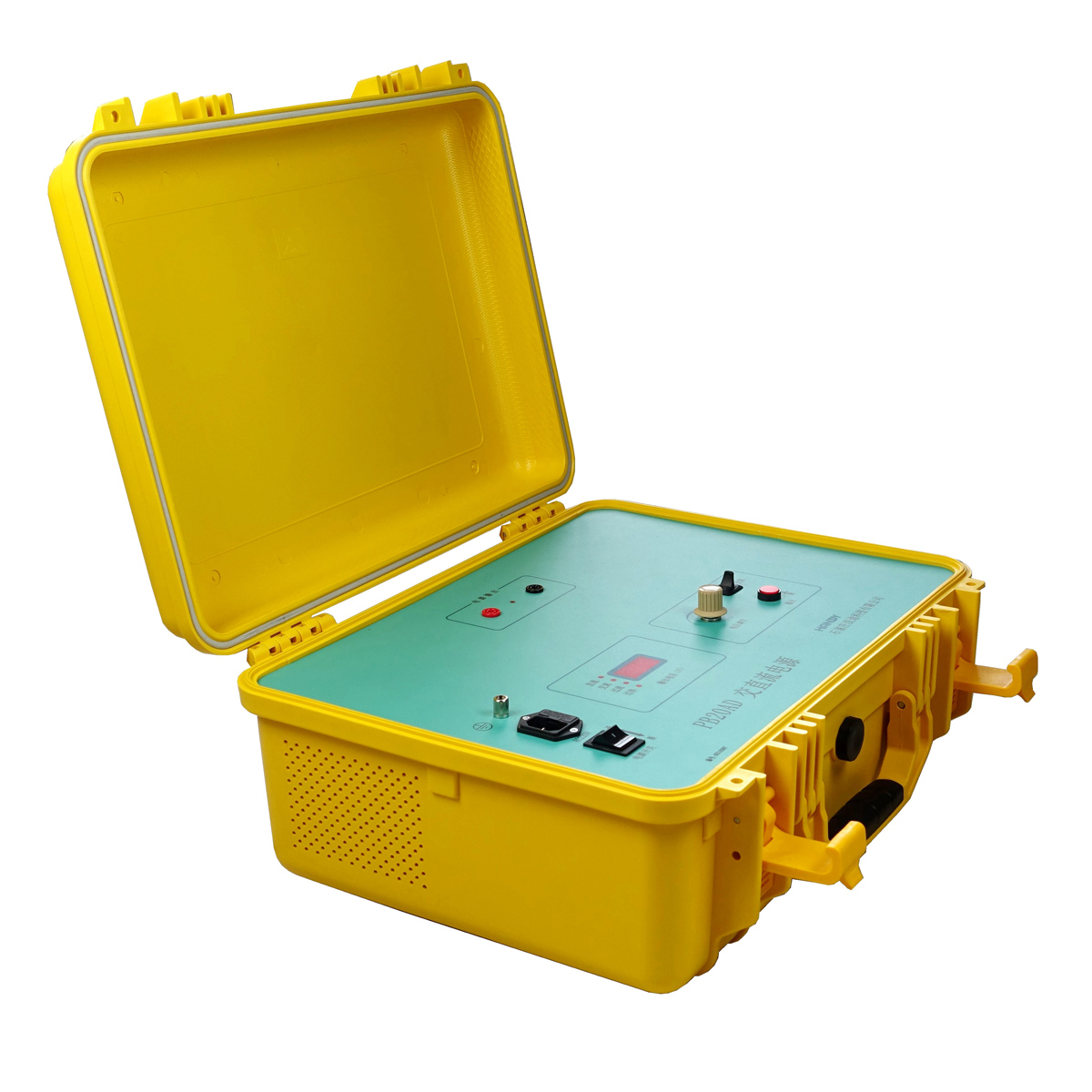

PB20D Circuit Breaker control power supply
PB Series High frequency power supply designed for circuit breaker. It is suited for circuit breaker motor drive power, close and open operation control voltage.
描述
Voltage Stabilizer Accuracy：±1%
Ripple coefficient：≤±1%
Environment：-20-50℃
Humidity ≤90%RH Non-condensing
| Model | Power supply | Output voltage | Output current | Weight | Dimension |
| PB10D | AC220V | DC 10 to 270V | 10A | 10kg | 482×500×133mm |
| PB20D | AC220V | DC 10 to 270V | 20A | 10kg | 482×500×133mm |
| PB30D | 3-Phase AC380V±10% | DC 10 to 270V | 30A | 13kg | 482×500×133mm |
| PB45D | 3-Phase AC380V±10% | DC 10 to 270V | 45A | 16kg | 482×500×178mm |
| PB60D | 3-Phase AC380V±10% | DC 10 to 270V | 60A | 19kg | 482×500×178mm |
